Pancreatic injury in children: a case report and review of the literature

Journal of Medical Case Reports201711:217

https://doi.org/10.1186/s13256-017-1383-3

Received: 6 December 2016

Accepted: 7 July 2017

Published: 9 September 2017

Abstract

Background

Trauma is the main cause of morbidity and mortality in the pediatric population. Blunt trauma to the abdomen accounts for the majority of abdominal injuries in children. Pancreatic injury, although uncommon (2 to 9%), is the fourth most common solid organ injury. Unlike other solid organ injuries, pancreatic trauma may be subtle and difficult to diagnose. Computed tomography currently is the imaging modality of choice.

As the incidence of pancreatic injury in children sustaining blunt abdominal trauma is low, management remains a challenge.

Case presentation

We present a 7-year-old Bahraini boy who sustained blunt trauma to his abdomen. He presented with abdominal pain and vomiting. His examination revealed abdominal distension and an epigastric bruise. Contrast-enhanced computed tomography reported grade III liver injury, grade I bilateral renal injury, a suspicion of splenic injury, and a grade III to IV pancreatic injury. He was admitted to Pediatric Intensive Care Unit and was treated conservatively. Because he was stable, he was discharged to the surgical ward at day 3. At day 18 he developed a pancreatic pseudocyst that was aspirated and recurred at day 25 when a pigtail catheter was inserted. He was kept on total parenteral nutrition through a peripherally inserted central catheter. The pigtail catheter was removed on day 36 and a low fat diet was started by day 44. He was discharged home at day 55 in good health. Out-patient follow-up and serial abdominal ultrasound showed resolution of the cyst and normalization of blood tests.

Conclusion

Non-operative management of pancreatic injury is effective and safe in hemodynamically stable patients with no other indication for surgery.

Keywords

Case report Blunt trauma abdomen Pancreatic injury Computed tomography Liver injury Pancreatic pseudocyst Total parenteral nutrition Non-operative management

Background

Blunt trauma to the abdomen accounts for the majority of abdominal injuries in children. Pancreatic injury, although uncommon (2 to 9%) [1], is the fourth most common solid organ injury, following the spleen, liver, and kidneys [2]. The first description of a pancreatic injury was by Travers in 1827 in England [3].

Unlike other solid organ injuries, pancreatic trauma may be subtle or difficult to visualize on computed tomography (CT) immediately after the incident. The radiologist often must rely on secondary findings in the absence of an obvious laceration or frank fracture of the pancreas [3].

As the incidence is low, management remains a challenge. In the past two decades, there has been ongoing debate about the optimal approach to treating pancreatic injuries with some authors advocating early operative intervention and others suggesting that a non-operative approach is advantageous and safe [1]. Non-operative management of minor pancreatic injury is well accepted, but the management of more serious pancreatic injury with capsular, ductal, or parenchymal disruption remains controversial [2]. Here, we report a case of severe blunt pancreatic injury with ductal injury that was successfully managed non-operatively.

Case presentation

This patient is a 7-year-old Bahraini boy who sustained blunt trauma to his abdomen from the bar of a football goal post. He presented with abdominal pain and vomiting. On arrival to accident and emergency department, he was conscious, alert, and oriented. His pulse was 121 beats per minute, blood pressure was 96/53 (mean 68) mmHg, and respiratory rate was 30 cycles per minute. His abdomen was distended with an epigastric bruise. On admission his hemoglobin was 9.2 g/dL (12 to 14.5), white blood cell count was 20.3×109/L (3.6 to 9.6), serum amylase was 116 U/L (30 to 118), and glucose was 26.8 mmol/L (3.6 to 8.9; Table 1). Pan-CT revealed a grade III liver injury (Fig. 1), grade I bilateral renal injury, and a suspicion of splenic injury was raised by the radiology registrar. The CT films were reviewed next day by a consultant radiologist and reported a grade III to IV pancreatic injury (Fig. 2). Our patient was admitted to the Pediatric Intensive Care Unit (PICU) and was treated conservatively. Because he was stable, he was discharged to the surgical ward by day 3. His blood test results were monitored closely and showed a gradual rise in serum amylase level during the first week of injury (Fig. 3). At day 18 he developed abdominal distension and vomiting. An abdominal examination revealed a palpable epigastric mass. A CT scan showed a pseudocyst (Fig. 4) which was aspirated percutaneously under ultrasound guidance by an interventional radiologist. The cyst recurred at day 25 (Fig. 5) so a pigtail catheter was inserted for continuous drainage under ultrasound guidance. Throughout his stay, he was maintained on total parenteral nutrition (TPN) through a peripherally inserted central catheter (PICC) line. The pigtail catheter was removed after ten days and a low fat diet was started by day 44 as he did not tolerate orally administered nutrition earlier. He was discharged home at day 55 in good health. Out-patient follow-up and serial ultrasound showed resolution of the cyst (Fig. 6) and normalization of his blood investigations (Fig. 7 and Table 1).
Table 1

Monitored blood investigations during the first week until follow-up visit after blunt abdominal trauma with pancreatic injury in a 7-year-old boy

Test

D1

D2

D3

D4

D5

D6

D7

W2

W3

W4

W5

FU

Hemoglobin (12–14.5 g/dL)

9.2

13.9

11.5

11.2

9.9

10.4

11.9

10.3

9.4

9.0

8.9

11.1

White blood cells count (3.6–9.6 ×109/L)

20.3

6.4

5.2

9.2

11.9

12.2

14.3

3.8

4.3

5.6

5.2

5.4

Platelets (150–400×109/L)

148

154

121

95

151

169

218

93

82

75

190

299

Glucose (3.6–8.9 mmol/L)

26.8

6.8

5.9

5.2

5.5

4.6

5.8

7.0

6.5

6.6

4.8

5.8

Alkaline phosphatase (50–136 U/L)

239

190

135

122

130

106

135

146

129

154

154

218

Alanine amino transferase (<41 U/L)

1327

955

1243

1247

807

599

447

30

30

77

52

39

G-glutamyl transferase (15–85 U/L)

33

36

29

28

31

30

40

32

27

43

42

31

Amylase (30–118 U/L)

116

192

340

553

716

682

795

221

158

97

93

63

D day, W week, FU follow-up

Fig. 1

Axial post-intravenous contrast-enhanced computed tomography scan shows grade III liver laceration at segment IV of the liver in a 7-year-old boy with a blunt abdominal trauma (arrows)

Fig. 2

Intravenous contrast-enhanced computed tomography scan shows vertical hypodense transection line through the pancreatic neck (black arrow) and hemoperitoneum (white arrow) fills the retroperitoneal spaces in a 7-year-old boy with a blunt abdominal trauma

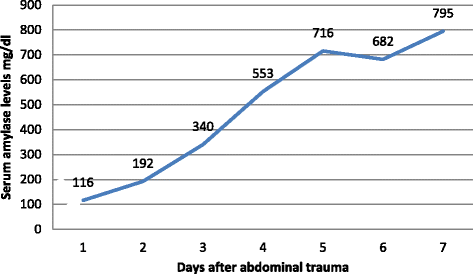

Fig. 3

Gradual rise in serum amylase levels during the first week of injury in a 7-year-old boy with a blunt abdominal trauma

Fig. 4

A post contrast axial computed tomography scan at portovenous phase shows a pseudocyst (black arrow) formation at the lesser sac in a 7-year-old boy with a blunt abdominal trauma. The liver laceration has healed

Fig. 5

Ultrasound of the abdomen showing large pseudocyst containing echogenic material in a 7-year-old boy following a blunt abdominal trauma with pancreatic injury

Fig. 6

Axial ultrasound images at the level of the pancreas and retroperitoneum shows complete healing of the pancreatic injury and resolution of the lesser sac pseudocyst in a 7-year-old boy with a blunt abdominal trauma

Fig. 7

Normalization of serum amylase in a 7-year-old boy with a blunt abdominal trauma and pancreatic injury

Discussion

Blunt abdominal trauma is the major cause of abdominal injury in children. Whereas injury to the pancreas is uncommon; it is the fourth most common solid organ injury. Death directly attributable to pancreatic injury in children has not been reported previously in the English language literature. Traditionally, pancreatic injury has been difficult to diagnose and treat, with diagnostic and therapeutic surgical interventions necessarily common [4].

The mechanism of injury is attributed to the compression of the pancreas against the rigid spinal column or by discrete intrusion forces. Young children with flatter diaphragms, thinner abdominal walls, and higher costal margins sustain pancreatic injuries from blows to the abdomen more than adults [2]. This feature is evident in our presented patient as he was thin built.

As all patients who have experienced trauma undergo CT to detect injuries, the sensitivity of abdominal CT in pancreatic injury is unknown and false-positive and false-negative evaluations are common. Problems relating to streak artifacts, un-opacified loops of bowel, and observer error persist. Trauma to adjacent organs, such as the spleen and kidneys, can further obscure evaluation of the pancreas [3].

Lane et al. reported that the actual pancreatic laceration is difficult to identify [3]. However, they mentioned that a careful evaluation of the reported secondary findings (that is, intrapancreatic hematoma, intraperitoneal and extraperitoneal fluid, fluid separating the splenic vein and pancreatic body, and a thickened left anterior renal fascia), often should lead the radiologist to the site of fracture once there is a suspicion and this definitely requires experience [3]. The initial CT report of our patient did not detect the pancreatic injury until an experienced consultant reviewed the films and detected the pancreatic injury.

The diagnostic relevance of CT is limited. CT in combination with magnetic resonance cholangiopancreatography (MRCP) may be a better option for exclusion of pancreatic duct lesions [5]. Not all centers have the expertise to do endoscopic retrograde cholangiopancreatography (ERCP) for pediatric patients; hence, they must rely on the CT findings and the experience of the radiologist which we did as we do not do ERCP for younger children.

Although both the sensitivity and specificity of an elevated admission amylase have been shown to be low, the relationship between repeat serum amylase and injury severity was shown to have strong statistical significance [2]. Serum amylase level may not be diagnostic within three or fewer hours after trauma [6]. Aydogdu et al. studied their patients with pancreatic injury and compared the ones who developed pseudocyst to the ones who did not develop it and found that a rise in the serum amylase level may be a good predictor for the development of pancreatic pseudocyst [7]. This was shown clearly in our patient where his serum amylase level was normal on admission and increased gradually over the first week of admission and thereafter he developed a pancreatic pseudocyst (Fig. 3).

Even at a single institution, the decision to operate for pancreatic trauma appears to be case dependent. This variability highlights the need for more rigorous outcomes research to guide management decisions [1].

Authors advocating for operative treatment of pancreatic trauma argue that non-operative treatment results in unnecessary prolongation of hospitalization, inconvenience to patients, and increased incidence of pancreatic pseudocyst, particularly when ductal injury is suspected. Other authors have argued for a conservative approach to major pancreatic trauma with selective operative management. Some recommended distal pancreatectomy in children with grade II injury but non-operative management of grade III, suggesting that pseudocyst formation should be considered a “favorable” outcome in the natural history of traumatic pancreatic injury [1]. Our patient developed a pseudocyst that was drained percutaneously initially and then required insertion of a pigtail catheter for continuous drainage by an interventional radiologist. This relieved the child’s symptoms and helped him in his recovery.

High-grade pancreatic injuries in children are rare and significant variability exists in non-operative management strategies, which may affect outcomes and effective resource utilization where length of stay is always a concern [8, 9]. Recently published studies show that children managed non-operatively have equivalent and sometimes better outcomes when compared with operative management in regard to death and overall complications [810].

Conclusions

Pancreatic injury although uncommon can occur and warrants special attention due to its associated morbidities.

Although case dependent, non-operative management is the treatment of choice in solid organ injuries and pancreas is added to the list. This management can be applied to all grades of pancreatic injury provided the child remains hemodynamically stable.

Declarations

Acknowledgements

Not applicable.

Funding

Not applicable.

Availability of data and materials

Data sharing is not applicable to this article as no datasets were generated or analyzed during the current study.

Authors’ contributions

FH wrote the article, reviewed the literature, and constructed the table. MA is part of the surgical team who reviewed the manuscript. EA managed the case and reviewed the manuscript with valuable comments. MD managed the child in emergency and is part of the surgical team and reviewed the manuscript. HI reviewed the whole manuscript with few changes. HN provided part of the radiological images and the comments in the manuscript and captions. HH provided part of the radiological images and comments in the manuscripts and the captions. SA is the interventional radiologist who diagnosed and managed the pancreatic pseudocyst and reviewed the manuscript. All authors read and approved the final manuscript.

Ethics approval and consent to participate

Approved by Department of Surgery Ethical committee.

Consent for publication

Written informed consent was obtained from the patient’s legal guardian(s) for publication of this case report and any accompanying images. A copy of the written consent is available for review by the Editor-in-Chief of this journal.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
Pediatric Surgery Unit-Department of Surgery, Salmaniya Medical Complex
(2)
Department of Pediatrics, Salmaniya Medical Complex
(3)
Department of Radiology, Salmaniya Medical Complex

References

  1. Wood JH, Partrick DA, Bruny JL, Sauaia A, Moulton SL. Operative vs nonoperative management of blunt pancreatic trauma in children. J Pediatr Surg. 2010;45:401–6.View ArticlePubMedGoogle Scholar
  2. Jobst MA, Canty TG, Lynch FP. Management of pancreatic injury in pediatric blunt abdominal trauma. J Pediatr Surg. 1999;34:818–23.View ArticlePubMedGoogle Scholar
  3. Lane MJ, Mindelzun RE, Jeffrey RB. Diagnosis of pancreatic injury after blunt abdominal trauma. Semin Ultrasound CT MR. 1996;17(2):177–82.View ArticlePubMedGoogle Scholar
  4. Jacombs ASW, Wines M, Holland AJA, Ross FI, Shun A, Cass DT. Pancreatic trauma in children. J Pediatr Surg. 2004;39(1):96–9.View ArticlePubMedGoogle Scholar
  5. Bosboom D, Braam AWE, Blickman JG, Wijnen RMH. The role of imaging studies in pancreatic injury due to blunt abdominal trauma in children. Eur J Radiol. 2006;59:3–7.View ArticlePubMedGoogle Scholar
  6. Takishima T, Sugimoto K, Hirata M, Asari Y, Ohwada T, Kakita A. Serum amylase level on admission in the diagnosis of blunt injury to the pancreas. Ann Surg. 1997;226:70–6.View ArticlePubMedPubMed CentralGoogle Scholar
  7. Aydogdu B, Arslan S, Zeytun H, Arslan MS, Basuguy E, İçer M, et al. Predicting pseudocyst formation following pancreatic trauma in pediatric patients. Pediatr Surg Int. 2016;32(6):559–63.View ArticlePubMedGoogle Scholar
  8. Naik-Mathuria BJ, Rosenfeld EH, Vogel A, Gosain A, Burd R, Falcone RA Jr, et al. And the Pancreatic Trauma Study Group (PTSG) Collaborators. Proposed Clinical Pathway for Non-Operative Management of High-Grade Pediatric Pancreatic Injuries based on a Multicenter Analysis: A Pediatric Trauma Society Collaborative. J Trauma Acute Care Surg. 2017; Jun 6. doi: https://doi.org/10.1097/TA.0000000000001576.
  9. Naik-Mathuria B. Practice variability exists in the management of high-grade pediatric pancreatic trauma. Pediatr Surg Int. 2016;32(8):789–94.View ArticlePubMedGoogle Scholar
  10. Mora MC, Wong KE, Friderici J, Bittner K, Moriarty KP, Patterson LA, et al. Operative vs nonoperative management of pediatric blunt pancreatic trauma: evaluation of the national trauma data bank. J Am Coll Surg. 2016;222(6):977–82.View ArticlePubMedGoogle Scholar
